Riedel - CAPER - Viditec

Sistemas de intercomunicación y redes basadas en fibra para la distribución de señales de video, audio y datos

Riedel Communications, fundada en 1987, diseña, fabrica y distribuye innovadoras redes para video, audio y comunicaciones en tiempo real. Sus productos se utilizan para aplicaciones de transmisión, audio profesional, eventos, deportes, teatro y seguridad en todo el mundo. La compañía es conocida por ser pionera en sistemas de matriz de audio digital, así como en redes de medios basadas en IP y SDI.

Ultimas Novedades!

Ecosistema de intercomunicación seguro y confiable para el equipo de NBA Bubble con Bolero de Riedel

El intercomunicador inalámbrico Bolero de Riedel y las soluciones de intercomunicador de matriz digital Artist están proporcionando una amplia red troncal de comunicaciones para la NBA Bubble 2020 en Orlando, Florida. Ubicada dentro de Walt Disney World, NBA Bubble es una zona de estricto aislamiento creada para permitir que continúe la temporada de baloncesto 2019-2020 mientras protege a los jugadores de la NBA del COVID-19.

Sistema de Intercomunicación Inalámbrico BOLERO

Equipos Destacados

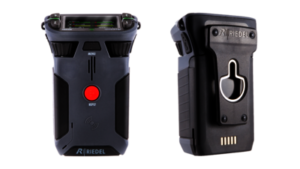

Bolero 6-key Beltpack

Next generation, digital, license free 1.9GHz DECT band
Up to six full-duplex keys plus convenient REPLY button to last caller
Riedel-exclusive ADR receiver technology overcomes multipath issues
Modern high-clarity voice codec increases beltpack to antenna density
Integrated Bluetooth technology for wireless headsets or phone connection
IP-65 environmental sealing
Tough, ergonomic beltpack built to survive
NFC means no registration headaches!
Touch the beltpack to the antenna and GO!
Can be used as a beltpack, a portable desktop keypanel, or a walkie-talkie
Integrated mic and speaker for headset-free operation

Bolero 6-key Beltpack – 2.4Ghz

Next generation, digital, 2.4GHz band
Up to six full-duplex keys plus convenient REPLY button to last caller
Riedel-exclusive ADR receiver technology overcomes multipath issues
Modern high-clarity voice codec increases beltpack to antenna density
IP-65 environmental sealing
Tough, ergonomic beltpack built to survive
NFC means no registration headaches!
Touch the beltpack to the antenna and GO!
Can be used as a beltpack, a portable desktop keypanel, or a walkie-talkie
Integrated mic and speaker for headset-free operation

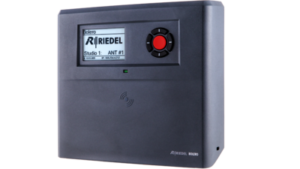

Bolero Active Antenna

Up to 250 beltpacks and 100 antennas per Bolero Net
Intelligent use of bandwidth results in 10 beltpacks per antenna
Decentralized SMPTE 2110-30 (AES67) IP-networked antennas
Fully re-programmable FPGA to handle future networks.

Bolero Active Antenna – 2.4GHz

Up to 250 beltpacks and 100 antennas per Bolero Net
Intelligent use of bandwidth results in 8 beltpacks per antenna
Decentralized SMPTE 2110-30 (AES67) IP-networked antennas
Fully re-programmable FPGA to handle future networks

ARTIST-1024

2RU frame with up to 1024 ports
High-density Universal Interface Cards (UIC) with up to 128 ports per card
Software-defined UICs can switch between SMPTE 2110-30/31 (AES67), Dante, MADI or router/processor/Artist fiber
New 2022-7 and N+1 redundancy schemes
Multiple independent sync domains per node
Flexible licensing scheme
Advanced frame design with reversible front-to-rear cooling

UIC for ARTIST-1024

High-density Universal Interface Cards (UIC) with up to 128 ports per card
Software-defined UICs can switch between SMPTE 2110-30/31 (AES67), Dante, MADI or router/processor/Artist fiber
Only for Artist-1024

RIMOTION REPLAY

R6

The R6 offers the best balance between channel density and cost efficiency to truly offer our most affordable & powerful, small form factor instant replay system. It comes with 6 configurable channels for up to 4 camera inputs with a minimum hardware footprint in a 1U portable chassis and includes:

Replays & Highlights
Import / Export of media
New Slow Motion Remote Controller

R8

Although defined by a compact 1RU form factor and significant cost advantages, the R8 represents the same high quality and professional approach, all Simplylive products are known for. It offers 8 configurable channels for up to 6 camera inputs with a minimum hardware footprint in a 1U portable chassis and includes:

Replays & Highlights
Import / Export of media
New Slow Motion Remote Controller

R12

The R12 provides the ultimate replay power in a compact 2RU, redundant, intuitive and scalable bundle. It offers 12 configurable channels for up to 10 camera inputs for a single operator or choose 8 camera inputs and 4 outputs for dual operators. This bundle includes:

Replays & Highlights
Import / Export of media
Dedicated Remote Controller
Single or Dual Operators
Networking of Multiple RiMotion 12 Servers

REFBOX

Flexible, Affordable Video Review & Analysis

The RefBox system has all the essential capabilities that you’d expect in a typical review system for officials on the courts or coaches in the locker rooms. Up to 25 cameras are in sync. It’s easy to swipe through a shot on the touch-screen UI – just touch the screen to select multiple angles to compare, pinch and zoom into the shot. Easily run through the action frame by frame on the screen.

The biggest difference between RefBox and other review systems is that you can run other Simplylive applications on the same platform. That means on Friday, the system can be used for referee review at the basketball game. On Saturday, the same system can be an an All-In-One production system for the football game. During the week, the coaches can analyze players performance back on RefBox. What if you need both live production capability and official review at the same time? Not a problem – the Simplylive Production Suite has the power to easily manage both of these critical tasks.

Features
