P240

Cámara PTZ Full NDI®

BIRDDOG
SKU: BIRDDOG-P240
Categorías: AUDIO y VIDEO, BIRDDOG, BROADCAST, Cámaras Profesionales., Cámaras PTZ y Remotas, Cámaras Remotas y PTZ., Cámaras y Camcorders
Etiquetas: NDI
Contactanos

    QSLtec Ecommerce de Viditec

    Tu entrada en el mundo de NDI®.

    Construida sobre el chip de silicio NDI® personalizado de BirdDog con un sensor CMOS de Sony, la cámara PTZ P100 es su entrada al mundo de NDI® completo. Con velocidades de cuadro de hasta 1080p60, zoom óptico de 10x, salidas USB 2.0, HDMI, SDI y Full NDI®, el P100 le brinda calidad, rendimiento y flexibilidad total de nivel profesional. Los conectores de audio de 3,5 mm permiten que el P100 funcione con BirdDog Comms, la primera plataforma de intercomunicador de audio NDI® del mundo.

    CARACTERISTICAS

    The game-changing camera just got more game.

    Building upon the NDI® PTZ category defining P200, the all new P240 introduces an updated Sony Exmor R broadcast sensor to deliver increased light sensitivity, and best in class image quality and performance.

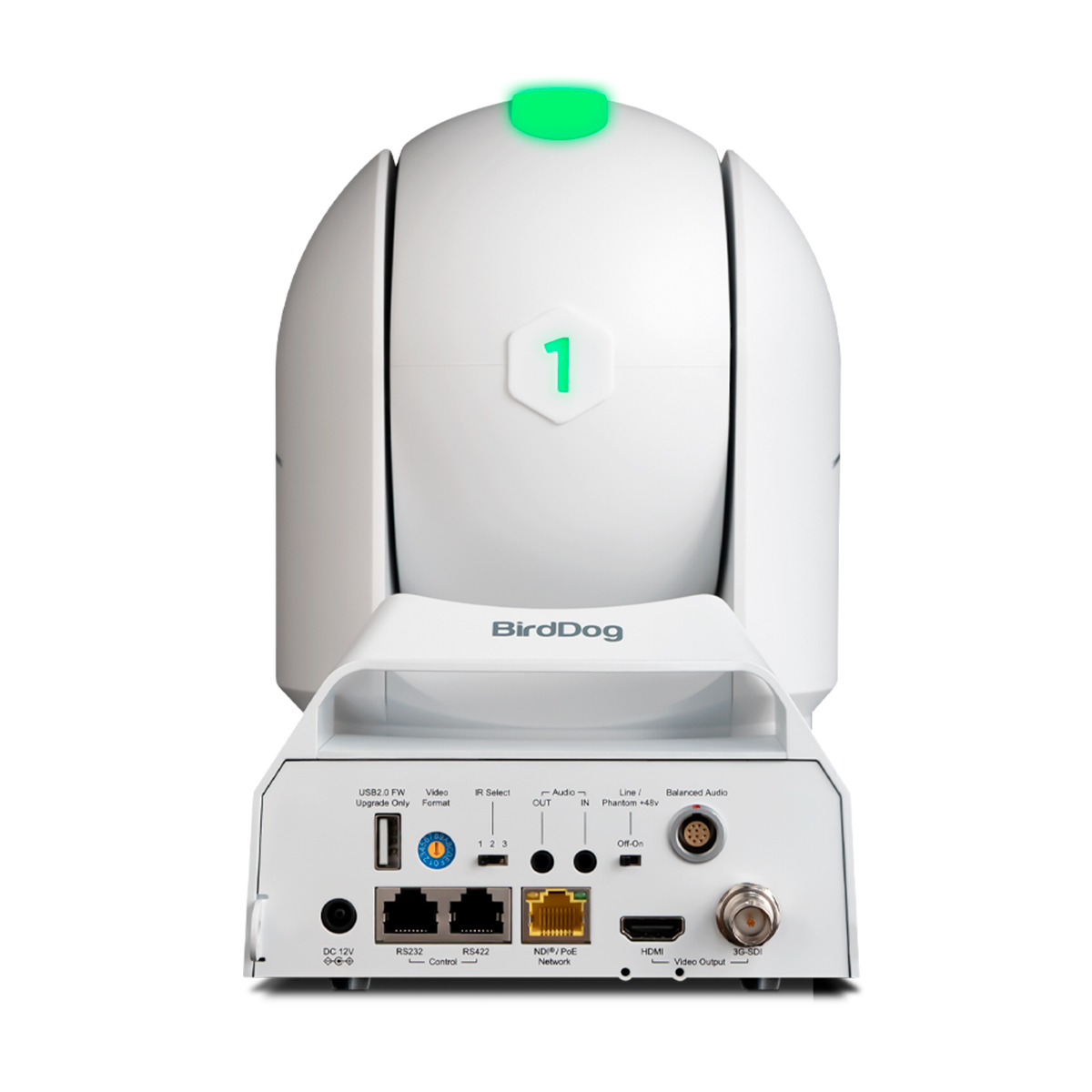

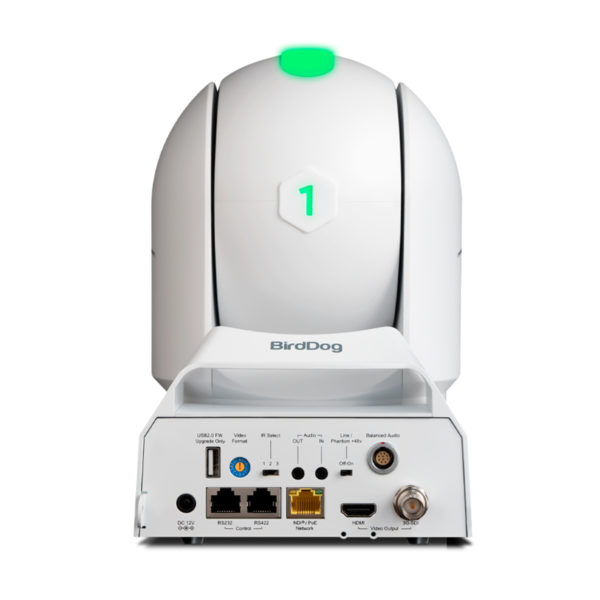

    P240 offers three output options including NDI®, SDI, and HDMI for ultimate video flexibility while Balanced XLR audio adds professional audio connections.

    IP output options include multiple flavours of NDI® including Full NDI®, NDI®|HX2, and HX3, SRT, and h.264, whilst BirdDog Cloud 3.0 integration unlocks globally connected remote productions.
    Free Auto-Tracking, FreeD output for AR/VR workflows, and additional features comprising an OLED display to show the IP address, 360° mohawk tally, filter thread, safety anchor point, and carry handle make P240 the best choice for live productions.
    And yes, the cameras support NDI® 5.5 natively.

    Sony Exmor R Sensor. Lowlight is a highlight.

    Sensors matter and the best-in-class Sony Exmor R back-illuminated image sensor housed in P240 delivers beautiful images even in challenging lighting situations. P240 performs brilliantly in changing lighting conditions of a concert with amazing lowlight performance.

    *Exmor R is a registered trademark of Sony Corporation.

    Balanced XLR. With Phantom Power.

    P240 features Balanced XLR audio inputs and outputs via the included breakout cable with locking connector which can also supply Phantom Power.

    NDI® 5.5. Welcome to the party pal.

    Full NDI 5.5 support is built right into P240 for maximum compatibility across all NDI® ecosystems.

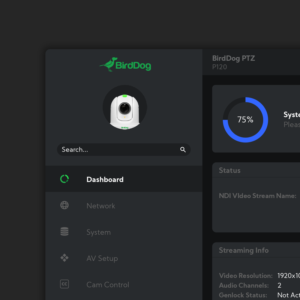

    BirdUI. With heads up display.

    P240 features the world’s most comprehensive interface for PTZ cameras. System statistics including the number of active connections, current bandwidth usage, and network traffic are presented in an intuitive way to give you the information you need at a quick glance.

    RUDP.
    Trust us, it’s awesome.

    Reliable User Datagram Protocol (now you know why we say RUDP) reduces overall network load as not every packet needs to be acknowledged by every receiver. RUDP has error correction built in for smoothness and maximum reliability so you can be confident your packets are getting to where they need to go.

    NDI® Genlock.
    Let that Sync in.

    With NDI® Genlock you can select any NDI® source to be the timing master for your fleet of P110 or P120 cameras – allowing them all to operate off the same time-base, providing more predictable timing in multi camera environments. Perfect for greater continuity when recording concerts, conferences, and live productions.

    Do not believe it to be a matter of hope, it is simply a matter of time.

    FreeD.
    For free.

    FreeD is a protocol for sending PTZ positioning data to AR/VR systems including Unreal Engine, Brainstorm, Vizrt’s Viz Virtual Studio, and many more. Both P100 & P120 now support FreeD and it’s all built right into the BirdUI.

    FreeD function is currently in beta. Final release coming soon.

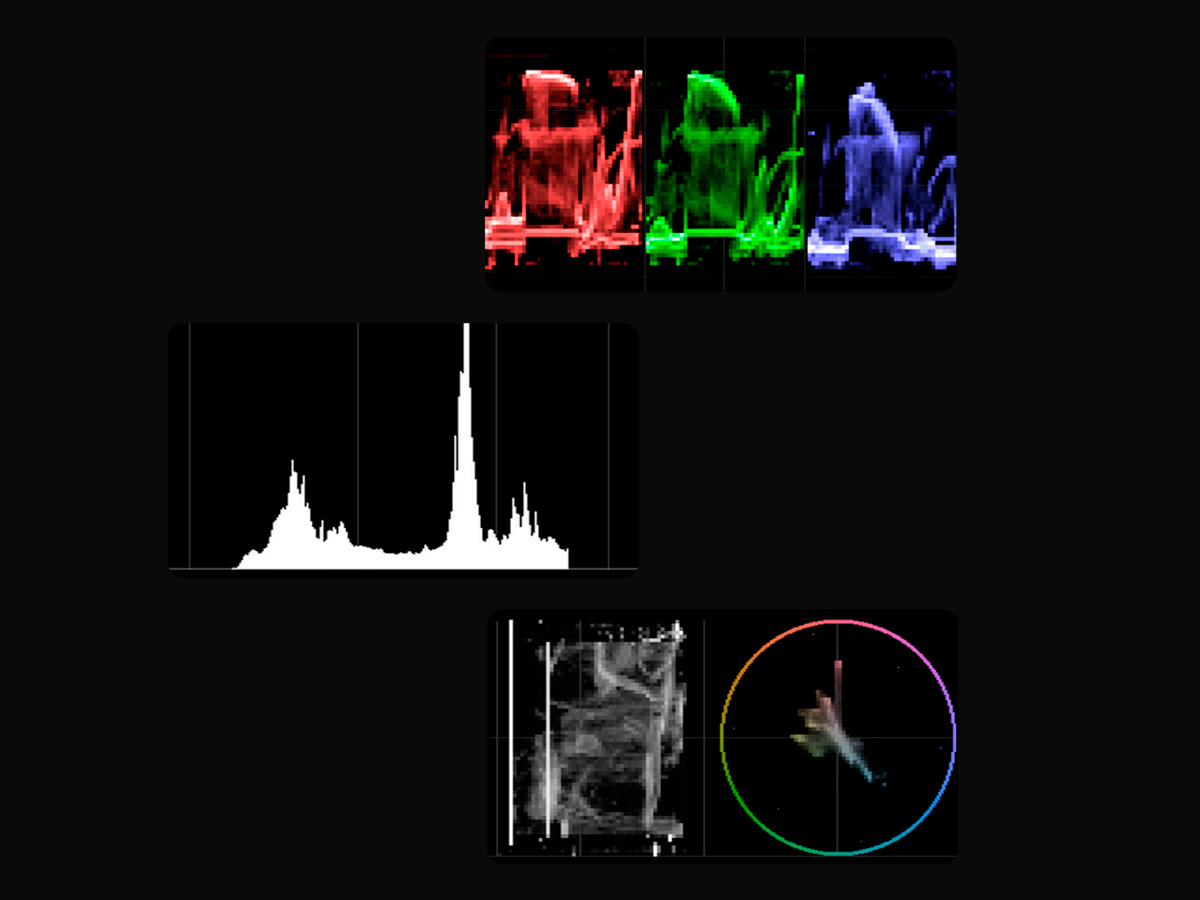

    NDI® Video Scopes.

    P240 can generate scopes in camera to send out as NDI, NDI Proxy, or both. This allows for monitoring scopes on the NDI Proxy while sending a clean main NDI feed simultaneously. Choose from Histogram, Waveform, Vectorscope, or RGB Parade and the position on the NDI stream.

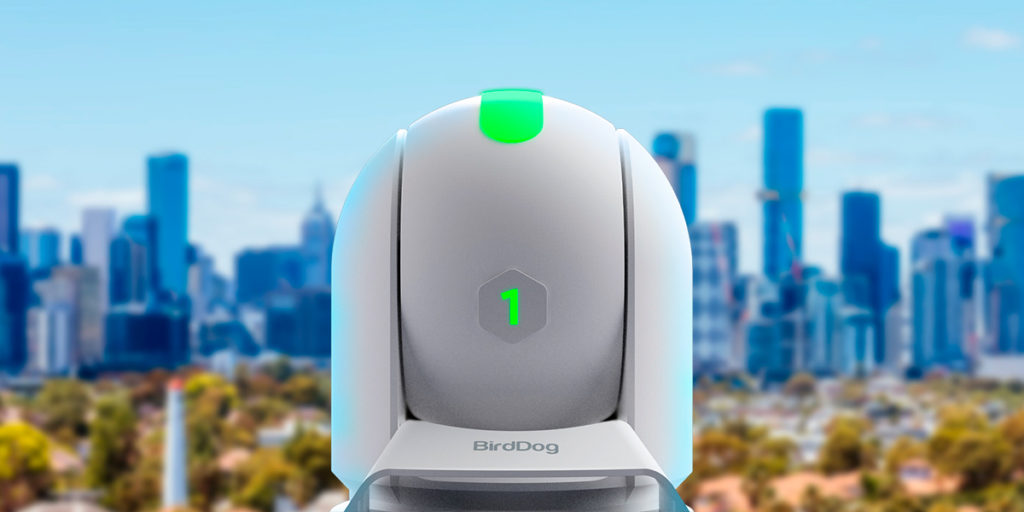

    360° Mohawk Tally.

    The innovative and totally punk mohawk tally gives a full 360º view so you’ll never be caught out wondering which camera you need to be talking to. If you gonna wear the mohawk, you stick with it. You don’t just be dibby-dabbing. You make up your mind.

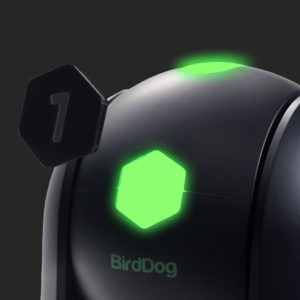

    Unique Numbering System.

    Removable silicon numbers at the back of the P240 give additional Tally vision and allow switcher operators to easily identify cameras.

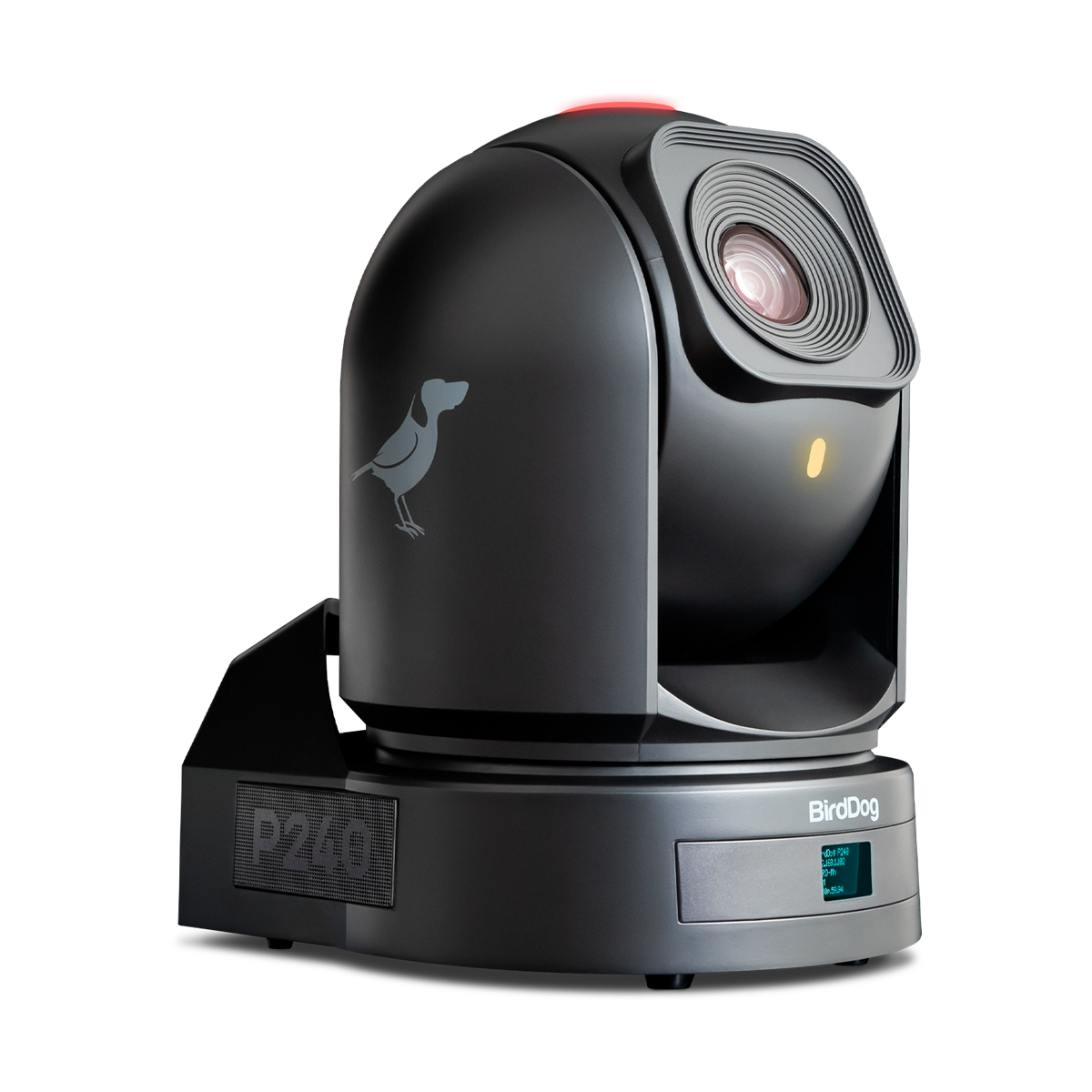

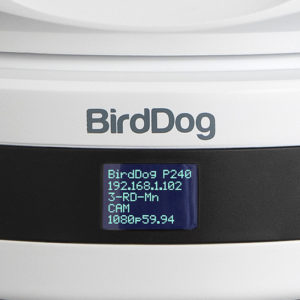

    OLED Display.

    The super handy OLED allows for information such as IP Address, Device Name, Stream Name, Resolution, and Frame Rate. Thanks to Jason it can also be turned off in the BirdUI.

    Globally Connected. No computers needed.

    By adding a BirdDog Cloud subscription, you can now access the PTZ cameras and all features from anywhere in the world. No computers needed on the camera side.

    All formats supported. Well almost.

    Along with Full NDI® P240 supports an insane amount of formats including NDI®|HX2, NDI®|HX3, SRT, h.264 for low bandwidth requirements.

    ESPECIFICACIONES

    Datos Técnicos

    P240

    CAMERA

    IMAGE SENSOR
    1 / 2.5 inch CMOS 8.5MP

    LENS
    4.4-88.4mm

    OPTICAL ZOOM
    Up to 40x *

    DIGITAL ZOOM
    12x

    SRZ (Super Resolution Zoom)
    40x in Full HD

    HORIZONTAL ANGLE OF VIEW
    70.2° (W) – 4.1° (T)

    APERTURE
    F2.0 (W) – F3.8 (T)

    MIN. ILLUMINATION
    Color: 0.4lux (1/30s, 50%, High Sensitivity mode On), 1.6lux (1/30s, 50%, High Sensitivity mode Off), 0.06lux(1/4s(1/3s),50%, High Sensitivity mode On)

    SHUTTER SPEED
    1/1 – 1/10000s

    FEATURES
    Visibility enhancer, Black & White, E-Flip, Mirror, Colour enhancement, Black level, gamma, Colour/Hue Adjust, HLC, Colour Bar

    ND FILTER
    YES

    IMAGE STABILIZER
    YES

    COLOR GAIN
    Yes (15 steps)

    COLOR HUE
    Yes (15 steps)

    GAMMA
    Standard, Straight, 512 pattern

    GAMMA LEVEL
    Yes (15 steps)

    BLACK LEVEL
    Yes (97 step) – Flicker Cancel: Yes

    NOISE REDUCTION
    On/Off (level 5 to 1/Off, 6 steps), 2D/3D

    S/N RATIO
    ≥50db

    FOCUS
    Auto Focus (Trigger/Interval), Manual Focus (Variable Speed), One Push Trigger, Near Limit

    WHITE BALANCE
    AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto）

    EXPOSURE
    Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE

    BACKLIGHT COMPENSATION
    YES
