FLEX 4K Family

Cámara PTZ UHD 4k 2160p 60 con Video, Audio, Control, Tally

BIRDDOG
SKU: NEWTEK-NDI PTZ2-1-1-1
Categorías: BIRDDOG, BROADCAST, Conversores, Conversores Profesionales
Etiquetas: NDI

    The Smallest 4K NDI on the Planet.

    K NDI® in an incredibly small package. Flex delivers everything you have come to expect from BirdDog including Tally, Audio Intercom, Video, Audio, PTZ Control, and Power. All over a single Ethernet cable. With 3 models to choose from in the Flex Family, there is a Flex perfect for your workflow needs.

    CARACTERISTICAS

    Small is the new Big.

    With a footprint only slightly larger than a credit card, the Flex 4K NDI Encoders and Decoders are the smallest on the planet. Because sometimes the biggest things are also the smallest.

    Cool touch thermals.

    Sometimes the biggest features are also the least obvious. Flex 4K NDI has  an unmatched thermal design and whisper quiet fans to keep Flex cool and fresh at all times. Even on the hottest of days and in direct sunlight.

    One cable to rule them all.
    Now with added power.

    BirdDog’s revolutionary Studio NDI gave the world NDI, Power, Video, Audio, Tally, and Audio Intercom all done a single Ethernet cable. Flex 4K IN and Flex 4K BACKPACK take it one step even further and provides an additional 15w power allowing you to use the DC output to power your monitor, recorder, or even your camera.

    Halo Tally. It just works.

    Flex’s revolutionary Halo Tally system is built right into the Flex Family and requires zero configuration when connected with any NDI enabled, software based, production system. The Halo Tally is designed to be seen by the camera operators as well as the on air talent.

    Flex 4K BACKPACK.
    Upgrade your monitor.

    Flex BACKPACK is the ultimate upgrade for your camera top monitor recorder. Featuring an NP style battery connection with 15w power output, it allows you to encode NDI, power your monitor, and record all at the same time. With great power comes great responsibility.

    The ultimate PTZ sidekick.

    If you aren’t lucky enough to own a BirdDog PTZ camera with Full NDI natively, then Flex is your ultimate sidekick. Plug in HDMI to encode Full NDI, and attach the optional PTZ control cable to have complete PTZ control. Perfect upgrade for your PTZ camera while waiting for Santa to bring you a BirdDog PTZ.

    G’Day Dante.

    Flex 4K NDI family can support Dante input and output via the 3.5mm audio jack. Flip Dante out of the NDI stream or embed Dante into the NDI stream. The choice is yours.

    Dante support for Flex 4K NDI is shipping soon and is a $69 add-on.
    Click here to register your interest.

    100% Recyclable packaging.
    We love Pachamama.

    Every element of Flex packaging is 100% recyclable. Soy based ink is used to further reduce our environmental footprint. There are no printed manuals inside the box to save paper. Of course, you can download the most up to date version anytime from our website.

    Camera Mount.

    The optional camera mount adds a 1-4”/20 female thread for mounting onto ball heads and magic arms to pimp your rig the way you want it.

    RESTful API. DIY automation.

    Download the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.

    Free Software Tools.

    Central Lite.

    Team up Central Lite with any NDI®  source, including all BirdDog hardware capable of creating NDI®  sources, you can now drive your NDI®  streams to any BirdDog Studio NDI or Mini to decode NDI®  back to SDI or HDMI.

    Dashboard.

    Open up a web browser (Chrome preferred) on the same network as Flex and
    login into Dashboard for total control of all settings. Change resolutions and
    frame rates, unlock new features with the latest firmware, and more.

    Comms Lite.

    Comms Lite is your free Audio Intercom solution. With support for four BirdDog devices, plus a director, Comms Lite is a great way to start using Audio Intercom in your live productions.

    ESPECIFICACIONES

    Datos Técnicos

    General

    FLEX 4K IN

    SUPPORTED VIDEO FORMAT
    UHD 2160p : 25.00, 29.97, 30.00
    HD 1080p : 25.00, 29.97, 30.00, 50.00, 59.94, 60.00
    HD 1080i : 50.00, 59.94
    HD 720p : 50.00, 59.94, 60.00

    VIDEO I/O CONNECTIVITY
    HDMI 2.0 Input : YES
    HDMI 2.0 Output : NO

    AUDIO INPUT
    HDMI : 2Ch, 48kHz
    3.5mm AUDIO :  Microphone/line input

    AUDIO OUTPUT
    HDMI : NO
    3.5mm AUDIO : Stereo Headphone/line output

    VIDEO CODEC SUPPORT
    NDI (Full bandwidth i-frame compression) : YES

    TALLY
    Integrated Tricolour Halo Tally : YES

    PTZ CONTROL
    2.5mm 4-pole RS232 (VISCA) : YES

    NETWORK CONNECTIVITY
    Ethernet RJ45 1000baseT w/integrated PoE (Power over Ethernet) : YES
    Embedded Web configuration Panel : YES

    WEIGHTS & DIMENSIONS
    Size : 107×63×31mm
    Weight : 140g

    POWER
    PoE (Power over Ethernet) : PoE+ 802.3at
    DC Input : DC 12v (30w max)
    DC Output : DC 12v (15w max)
    NP style Battery Output : NO

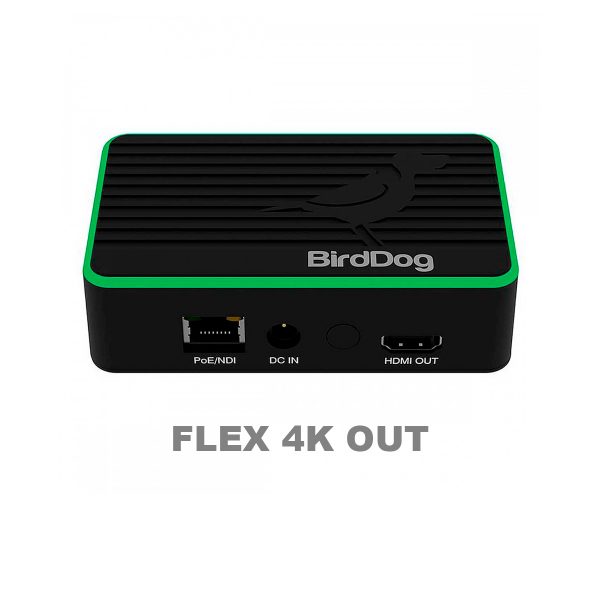

    FLEX 4K OUT

    SUPPORTED VIDEO FORMAT
    UHD 2160p : 25.00, 29.97, 30.00
    HD 1080p : 25.00, 29.97, 30.00, 50.00, 59.94, 60.00
    HD 1080i : 50.00, 59.94
    HD 720p : 50.00, 59.94, 60.00

    VIDEO I/O CONNECTIVITY
    HDMI 2.0 Input : NO
    HDMI 2.0 Output : YES

    AUDIO INPUT
    HDMI : NO
    3.5mm AUDIO :  Microphone/line input

    AUDIO OUTPUT
    HDMI : 2Ch, 48kHz
    3.5mm AUDIO : Stereo Headphone/line output

    VIDEO CODEC SUPPORT
    NDI (Full bandwidth i-frame compression) : YES

    TALLY
    Integrated Tricolour Halo Tally : YES

    PTZ CONTROL
    2.5mm 4-pole RS232 (VISCA) : YES

    NETWORK CONNECTIVITY
    Ethernet RJ45 1000baseT w/integrated PoE (Power over Ethernet) : YES
    Embedded Web configuration Panel : YES

    WEIGHTS & DIMENSIONS
    Size : 107×63×31mm
    Weight : 140g

    POWER
    PoE (Power over Ethernet) : PoE+ 802.3at
    DC Input : DC 12v (30w max)
    DC Output : NO
    NP style Battery Output : NO

    FLEX 4K BACKPACK

    SUPPORTED VIDEO FORMAT
    UHD 2160p : 25.00, 29.97, 30.00
    HD 1080p : 25.00, 29.97, 30.00, 50.00, 59.94, 60.00
    HD 1080i : 50.00, 59.94
    HD 720p : 50.00, 59.94, 60.00

    VIDEO I/O CONNECTIVITY
    HDMI 2.0 Input : YES
    HDMI 2.0 Output : NO

    AUDIO INPUT
    HDMI : 2Ch, 48kHz
    3.5mm AUDIO :  Microphone/line input

    AUDIO OUTPUT
    HDMI : NO
    3.5mm AUDIO : Stereo Headphone/line output

    VIDEO CODEC SUPPORT
    NDI (Full bandwidth i-frame compression) : YES

    TALLY
    Integrated Tricolour Halo Tally : YES

    PTZ CONTROL
    2.5mm 4-pole RS232 (VISCA) : YES

    NETWORK CONNECTIVITY
    Ethernet RJ45 1000baseT w/integrated PoE (Power over Ethernet) : YES
    Embedded Web configuration Panel : YES

    WEIGHTS & DIMENSIONS
    Size : 107×63×42.5mm
    Weight : 150g

    POWER
    PoE (Power over Ethernet) : PoE+ 802.3at
    DC Input : DC 12v (30w max)
    DC Output : DC 12v (15w max)
    NP style Battery Output : YES
