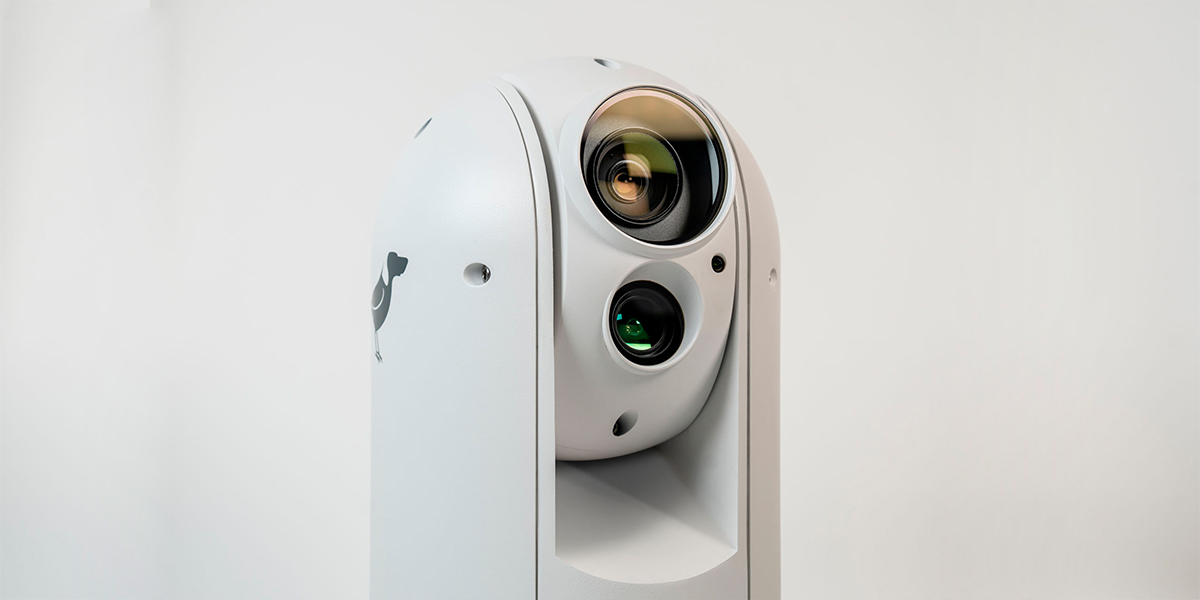

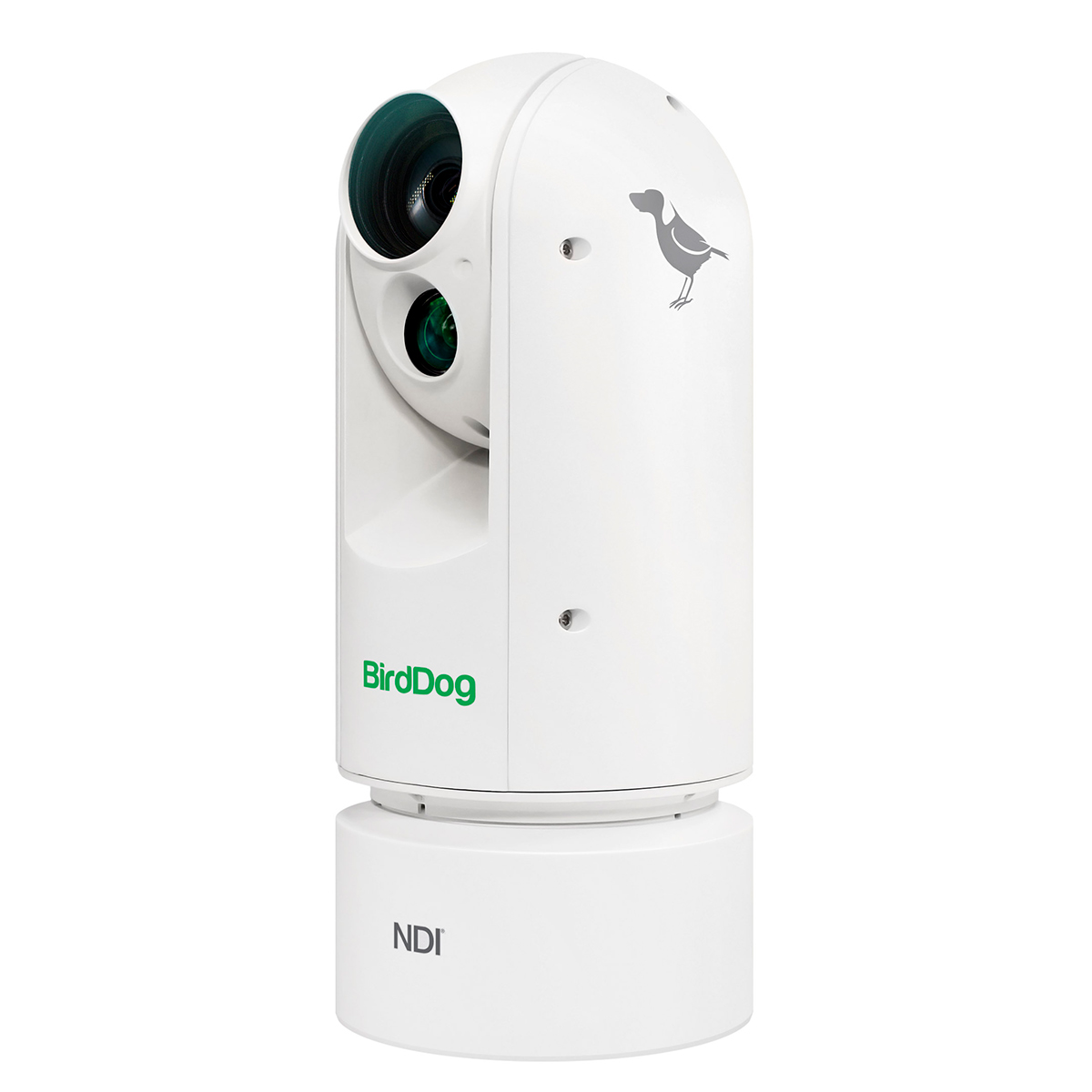

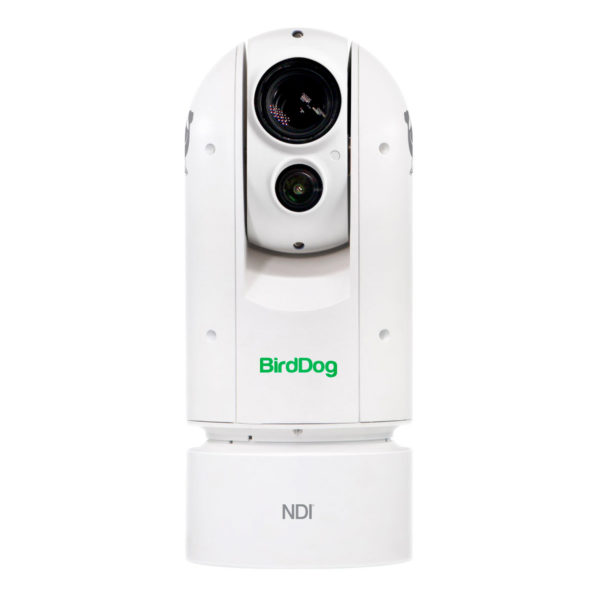

A300

Cámara a prueba de agua, Full PTZ NDI®

BIRDDOG
SKU: BIRDDOG-A300
Categorías: AUDIO y VIDEO, BIRDDOG, BROADCAST, Cámaras Profesionales., Cámaras PTZ y Remotas, Cámaras Remotas y PTZ., Cámaras y Camcorders
Etiquetas: NDI
Contactanos

    QSLtec Ecommerce de Viditec

    Tu entrada en el mundo de NDI®.

    Construida sobre el chip de silicio NDI® personalizado de BirdDog con un sensor CMOS de Sony, la cámara PTZ P100 es su entrada al mundo de NDI® completo. Con velocidades de cuadro de hasta 1080p60, zoom óptico de 10x, salidas USB 2.0, HDMI, SDI y Full NDI®, el P100 le brinda calidad, rendimiento y flexibilidad total de nivel profesional. Los conectores de audio de 3,5 mm permiten que el P100 funcione con BirdDog Comms, la primera plataforma de intercomunicador de audio NDI® del mundo.

    CARACTERISTICAS

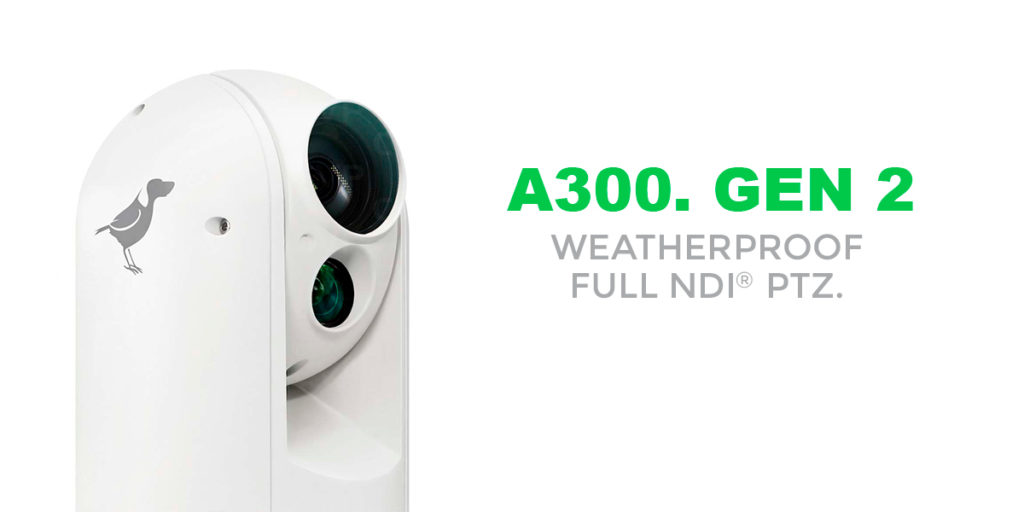

    Weatherproof Full NDI® PTZ.

    Designed for fixed outdoor installations such as sports, the IP67 rating and the Wind Load Durability rating equal to that of a category 4 Hurricane, which means A300 can withstand pretty much any weather conditions. By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS backlit sensor, and a true Sony Image module A300 has lightning auto focus, incredibly sharp images, and insanely fast zoom. A300 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and Full NDI® simultaneously.

    New Colour Matrix.
    Just like Color but Australian.

    Dialling in your cameras just levelled up. A300 now has a full colour matrix with individual saturation and hue control over Red, Green, Blue, Cyan, Yellow and Magenta, all with 64 levels of control.

    72 levels of Gamma.

    From negative to positive gamma positions you can now dial in those blacks with an unprecedented level of control.

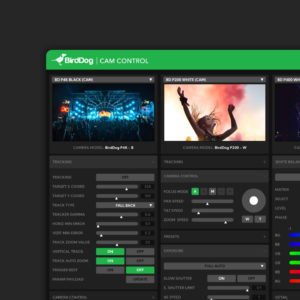

    REE Cam Control.
    Colour match in seconds.

    The Cam Control app is the easiest and most user-friendly way to dial in BirdDog cameras. Simply load on a Windows 10 machine on the same network as your BirdDog cameras and access all functions of the camera through a beautiful interface. Quickly dial in the look you like and copy settings across multiple cameras in seconds. And it’s 100% FREE with all BirdDog PTZ cameras.

    Full NDI®. No compromises.

    In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. A300 only Encodes and Decodes Full YUV422 NDI®.

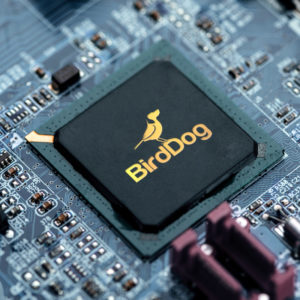

    Sony Sensor. You deserve the best.

    The best pictures come from the best silicon. A300 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.

    Sony Image Module. Optics done right.

    Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. A300 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.

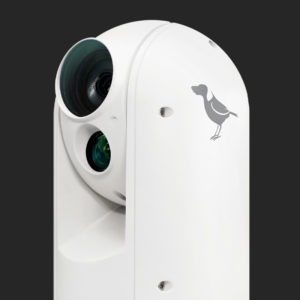

    All weather. Keep your NDI® dry.

    With an IP67 rating A300 is perfect for fixed installations in outdoor and indoor environments. The nitrogen filled housing ensures no fog, and the external housing has been treated for corrosion resistance against salt spray. With -40°C to +60°C operating temperature rating A300 has been designed to withstand the most extreme elements on earth.

    Nitrogen Filled Housing.
    Fog don’t live here.

    Never worry about missing the shot. With A300’s nitrogen filled housing there
    is no chance of the lens fogging up.

    Category 4 Hurricane?
    Bring it.

    Designed for all weather conditions, A300 boasts an incredible Wind Load Durability rating equal to 60m/s. As long as you have it secured properly A300 will just keep on keeping on.

    Frickin laser beam.
    Pew Pew.

    Built in infra red laser with a range of up to 500 metres helps with focusing in
    low light conditions.

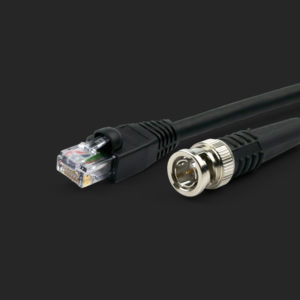

    Dual Output. NDI® and SDI.

    With NDI® and SDI simultaneous outputs you can use the A300 is ready to go live with your full NDI® workflow, or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232 to future proof your investment by using baseband video now and move to NDI® when you are ready.

    RESTful API. DIY automation.

    Download the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.

    30x Optical zoom.
    Over there is now over here.

    The two punch 30x optical zoom and all weather abilities of makes A300 perfect for outdoor and indoor fixed installations for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more.

    You spin me right round baby. Right round.

    360 degree continuous rotation, 255 preset positions, Zero Deviation Positioning technology, and a preset movement speed of 150 degrees per second mean you will never miss a shot again.

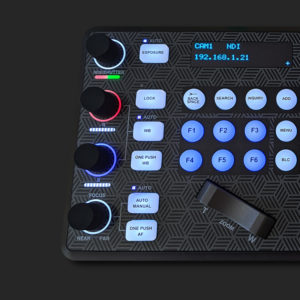

    PTZ Keyboard. Take control.

    Combine A300 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control A300 over NDI® or by RS422 / RS232 when using in SDI mode.

    PoE and Mounts. All options available.

    A300 can be powered by PoE with an optional PoE Injector. Designed to hang upside down the choice of mounting options gives coverage for virtually any situation. Wall mount, Ceiling Mount, Corner Mount, and Pole Mounting options all available.

    Globally Connected. No computers needed.

    By adding a BirdDog Cloud subscription, you can now access the PTZ cameras and all features from anywhere in the world. No computers needed on the camera side.

    All formats supported. Well almost.

    Along with Full NDI® P240 supports an insane amount of formats including NDI®|HX2, NDI®|HX3, SRT, h.264 for low bandwidth requirements.

    ESPECIFICACIONES

    Datos Técnicos

    CAMERA

    IMAGE SENSOR
    1 / 2.8 inch CMOS 2.13MP

    LENS
    4.3-129mm

    OPTICAL ZOOM
    30x

    DIGITAL ZOOM
    12x

    HORIZONTAL ANGLE OF VIEW
    63.7° (W) – 2.3° (T)

    APERTURE
    F1.6 (W) – F4.7 (T)

    MIN. ILLUMINATION
    Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)

    SHUTTER SPEED
    1/1 – 1/10000s

    FOCUS
    Auto, Push, Manual

    WHITE BALANCE
    Auto, Indoor, Outdoor, Manual, OPW, ATW

    EXPOSURE
    Auto, Manual, Shutter/Iris Priority

    BACKLIGHT COMPENSATION
    YES

    MECHANICAL

    PAN MOVEMENT
    Horizontal: 360° continuous pan (Zoom Adaptive Speed Range: 0.01°〜80°/s)

    TILT MOVEMENT
    Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.1°〜90°/s)

    PRESET POSITIONS
    255 (Speed adjustable: Up to 150°/s)

    ENVIRONMENTAL
    Outdoor/Indoor, IP67, corrosion resistant treated housing, Wind load durability 60m/s, Nitrogen filled housing

    OPERATING TEMPERATURE
    -40 – +60 (°C)

    OPERATING  HUMIDITY
    ≤80%

    ILLUMINATION
    IR Laser, illumination up to 500m

    VIDEO INTERFACE

    VIDEO OUTPUT
    NDI/SDI

    VIDEO FORMATS
    1080p 60, 59.94, 50, 29.97, 25
    1080i 60, 59.94, 50
    720p 60, 59.94, 50, 29.97, 25

    AUDIO I/O
    3.5mm Audio In (Stereo)
    3.5mm Audio Out (Stereo)

    CONTROL INTERFACE

    IP PTZ CONTROL
    NDI Control (auto configuring), VISCA IP

    SERIAL PTZ CONTROL
    RS422/RS485 Connector

    SERIAL CONTROL PROTOCOL
    VISCA / PELCO D

    POWER & DIMENSIONS

    POWER INPUT
    AC 24V, PoE 97W (BirdDog PoE 97W Injector, optional)

    POWER CONSUMPTION
    Min: 36W; Max: 76.68W（Fully loaded operation with heater and IR Laser on）

    DIMENSIONS
    180x180x423mm

    WEIGHT
    10.2kg

    NETWORK

    VIDEO COMPRESSION
    Full NDI – i-frame high quality low latency NDI for production

    NETWORK PROTOCOL
    NDI – Discovery, configuration and control

    WEB CONTROL INTERFACE
    Full control via Web/Mobile UI including Scene presets
